Saturday, August 21, 2010

Test Question

Question:

As part of project to built a sport stadium you are managing a sub-project to construct the automatic all whether roof. Level 2 of the WBS displays the phases manufacturing, electronic and controls and testing. Level 3 contains two deliverable for electronic and control, wiring and computerization.

The WBS dictionary describes the work the computerization deliverable requires as installing the management hardware and software and customizing the installation.

Task:

1) Construct the WBS
2) Determine the dependencies in Level 3
3) Create the WBS dictionary

Answer:

1) the WBS:


(Click to enlarge)

2) The dependencies

The hardware must be installed first before the software can be installed. Customizing the installation is done after install the software.

3) The WBS dictionary



(Click to enlarge)

Quiz 1

Consider the following table which describes the activities to be done to Build A House and it's sequence.


(Click to enlarge)

Task
1) Construct the network Diagram
2) Find the critical path

Answer:

1) The network diagram

(Click to enlarge)

2) The critical path


(Click to enlarge)

The critical path is A+B+D+G since it takes the longest duration to finish the project.

Wednesday, July 28, 2010

Project Management Life-Cycle™

Lecturer Name: Megat Zainurul Anuar Bin Megat Johari (www.thedreamsoft.com)

Patel and Morris have stated that
"The life cycle is the only thing that uniquely distinguishes projects from non-projects".

So, what is the project life cycle?The Project Life Cycle refers to a logical sequence of activities to accomplish the project’s goals or objectives.Regardless of scope or complexity, any project goes through a series of stages during its life. There is first an Initiating or Birth phase, Planning phase, Execution and Controlling and also Closing phase.

Project Initiating

In this first stage, the scope of the project is defined along with the approach to be taken to deliver the desired outputs. The project manager is appointed and in turn, he selects the team members based on their skills and experience. The most common tools or methodologies used in the initiation stage are Project Charter, Project Feasibility, Business Case, Job Description, Project Check list.

Project Charter:
  • Identify the project vision and objectives
  • Define the complete scope of the project
  • List all of the critical project deliverables
  • State the customers and project stakeholders
  • List the key roles and their responsibilities
  • Create an organizational structure for the project
  • Document the overall implementation plan
  • List any risks, issues and assumptions

The Project Charter defines the vision and boundaries for the project, as well as the high level roadmap. In addition, the Project Charter also defines the scope of the project, within which the deliverables are produced. With a well defined Project Charter, the Project Manager has a clear project roadmap for success.

Business Case:
  • Research the business problem or opportunity
  • Identify the alternative solutions available
  • Quantify the benefits and costs of each solution
  • Recommend a preferred solution to your sponsor
  • Identify any risks and issues with implementation
  • Present the solution for funding approval

The Business Plan is referred to frequently during the project, to determine whether it is currently on track. And at the end of the project, success is measured against the ability to meet the objectives defined in the Business Plan. So the completion of a Business Plan is critical to the success of the project.

Project Feasibility:
  • Research the business problem or opportunity
  • Document the business requirements for a solution
  • Identify all of the alternative solutions available
  • Review each solution to determine its feasibility
  • List any risks and issues with each solution
  • Choose a preferred solution for implementation
  • Document the results in a feasibility report

The purpose of a Feasibility Study is to identify the likelihood of one or more solutions meeting the stated business requirements. In other words, if you are unsure whether your solution will deliver the outcome you want, then a Project Feasibility Study will help gain that clarity. During the Feasibility Study, a variety of 'assessment' methods are undertaken. The outcome of the Feasibility Study is a confirmed solution for implementation.

Job Description:
  • Define the real purpose of the role
  • List the key responsibilities of the role
  • Define who this role will be reporting to
  • Create a detailed Organizational Chart
  • List the skills and experience needed
  • Define any relevant qualifications
  • Set out the key performance criteria
  • Identify the salary and working conditions

A Project Job Description should be completed every time a new role is identified. The Project Job Description should clearly state the objectives and responsibilities of the role and where it fits within the organizational structure

Project Office Check List:
  • Identify the right location for your PMO (Project Management Officer) team
  • Ensure that you have the correct infrastructure
  • Procure the right PMO equipment and tools
  • Define the PMO roles and responsibilities
  • Put in place suitable standards and processes
  • Implement relevant project management templates
  • Offer Project Management Office services to projects.

A Project Office Checklist helps you to establish and operate a Project Management Office. This Project Office Checklist contains a list of items to help you determine whether; the Project Office premises are fit for purpose, you have sufficient equipment available and whether all of the roles, standards and processes are in place within your Project Management Office environment.



Project Planning

The second phase should include a detailed identification and assignment of each task until the end of the project. It should also include a risk analysis and a definition of a criteria for the successful completion of each deliverable. The governance process is defined, stake holders identified and reporting frequency and channels agreed. The most common tools or methodologies used in the planning stage are Work Breakdown Structure (WBS) and Gantt Chart.

Work Breakdown Structure


Work Breakdown Structure is a complex project is made managable by first breaking it down into individual components in a hierarchical structure.

Work Breakdown Structure Diagram




The work breakdown structure is the foundation of project planning. It is developed before dependencies are identified and activity durations are estimated. The WBS can be used to identify the tasks in the CPM and PERT project planning models.

CPM- Critical Path Method

CPM models the activities and events of a project as a network. Activities are depicted as nodes on the network and events that signify the beginning or ending of activities are depicted as arcs or lines between the nodes.

CPM Diagram




Steps in CPM Project Planning

  1. Specify the individual activities.
  2. Determine the sequence of those activities.
  3. Draw a network diagram.
  4. Estimate the completion time for each activity.
  5. Identify the critical path (longest path through the network)
  6. Update the CPM diagram as the project progresses.

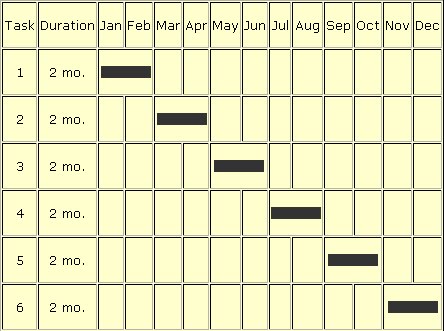

Gantt Chart


Gantt Chart is a tool for displaying the progression of a project in the form of a specialized chart. It is schedule tool takes the form of a horizontal bar graph.

Gantt Chart Format




Project Execution and Controlling

Project Execution and Control Phase follows the Project Planning Phase and ideally starts once the Project Plan has been approved and baselined. Project Execution is characterized by the actual work on the tasks planned and project Control involves the comparison of the actual performance with the planned performance and taking appropriate corrective action to get the desired output.

The basic processes of the Project Execution and Control can be:

  • Project Plan Execution.
  • Review of Metrics and Status Reports.
  • Change Control Process. This defines the procedures to handle the changes that are introduced
  • during Project Execution and Control.


The facilitating processes during Project Execution and Control can be:

  • Quality Assurance and Quality Control.
  • Performance Monitoring.
  • Information Distribution or Status Reporting.
  • Project Administration.
  • Risk Monitoring and Control.
  • Scope Control.
  • Schedule and Cost Control.
  • Contract Administration.

Closing Phase


Project Closure Phase is the last phase of the Project Life Cycle. The commencement of the Project Closure Phase is determined by the completion of all Project Objectives and acceptance of the end product by the customer.

Project Closure includes the following tasks:

  • Release of the resources, both staff and non-staff, and their redistribution and reallocation to other projects, if needed.
  • Closure of any financial issues like labour, contract etc.
  • Collection and Completion of All Project Records.
  • Archiving of All Project Records.
  • Documenting the Issues faced in the Project and their resolution. This helps other projects to plan for such type of issues in the Project Initiation Phase itself.
  • Recording lesson learn and conducting a session with the project team on the same. This helps in the productivity improvement of the team and helps identify the dos and donts of the Project.
  • Celebrate the Project Completion. Its party time folks!!!

The basic process of the Project Closure Phase involves:

  • Administrative Closure. This is the process of preparation of closure documents and process deliverables. This includes the release and redistribution of the Project Resources.
  • Development of Project Post Implementation Evaluation Report. It includes
    • Project Sign-Off
    • Staffing and Skills
    • Project Organizational Structure
    • Schedule Management
    • Cost Management
    • Quality Management
    • Configuration Management
    • Customer Expectations Management
    • Lesson Learn

Model Develop System


Sunday, July 18, 2010

Introduction To Project Management

Lecturer Name: Megat Zainurul Anuar Bin Megat Johari (www.thedreamsoft.com)


Learning Summary
General Definition Management:
a) How To Plan
b) How To Leading
c) How To Organizing
d) How To Control

It could be management for resources(human, financial, material, intellectual or intangible),management for bussiness, management for projects and others.

Specific definition project management: The application of knowledge, tools and technique to project activities.

In project management,the first place must have stakeholder and follow by the framework.

Stakeholder means the people involved and interested to the projects.Generally stakeholder consisting of:
a)Project Manager
b)Project Owner
c)Customer
d)Project Team

Framework means a fundamental structure or conceptual structure intended to serve as a support or guide for the building or projects of something that expands the structure into something useful.




Difference Project With Operation


Project
->Bersifat sementara
->Unik,khusus
->Ada project manager yang dilantik
->Perlu sumber(Money,Time)
->Mesti sda mula dan akhir projek

Operasi
->Berterusan
->Berulang
->Sesiapa pun boleh buat
->Tidak memerlukan kuasa untuk melaksanakan operasi
->Tidak memerlukan sumber
->Tiada start & end

As a project manager, we must have 3 things need to be focus.It is called Triple Constrain:




Scope consist of 2:
  • Project Scope such as build a university
  • Product Scope such as build lecture hall, classes (more specific)

Saturday, July 17, 2010

Several Projects That Have Been Completed



Project Title
:Lebuhraya Damansara–Puchong (Jalan Kepong to Damansara Utama)

Client:Gamuda-Irama Duta Sdn Bhd JV

Consulting Engineers:Arup Jururunding M&E Sdn Bhd

Project Cost:RM 130 million

Completion Date:1998

Scope:Consisted of an 8 km six lane dual carriageway with four grade separated interchanges. Four toll plazas and the service areas along the entire length of the highway.

Information on Project:

Lebuhraya Damansara-Puchong is a 40 km highway passing through both urban and rural areas of the city. It replaced an existing older road, providing traffic relief to the residential and commercial development adjacent to the highway.

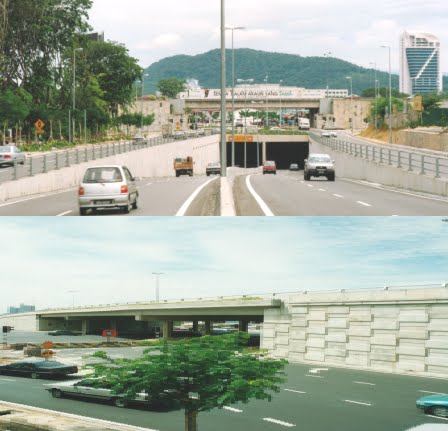

An interesting feature of one of the interchanges was the construction of an underpass between the abutments and foundations of an existing bridge flyover. Due to space limitations, hand-dugged caissons were adopted as retaining walls for the section of the underpass directly below the existing flyover.

With the proposed highway largely following the corridor of an existing road, local access was an important factor to be catered for in the design. This was achieved by the introduction of a combination of service roads and a limited number of high standard local accesses. Consideration was also given in the design to minimising the environmental impact on adjacent properties, particularly in residential areas.

Resources:http://www.arup.com.my/geotechnics.htm





Project Title:Century Hotel Kuala Lumpur

Client:Optima Jaya Sdn Bhd

Consulting Engineers:(Civil and Structural Engineering) Arup Jururunding Sdn Bhd

Architect:BEP Akitek Sdn Bhd

Project Cost:RM 120 million

Completion Date:1998

Scope:448 guest rooms in two tower blocks of 20 and 14 storeys. Located within the shopping district of Jalan Bukit Bintang, the hotel caters to business people and travellers. There are three levels of podium structures which house facilities such as a banquet hall, shopping arcade, food and beverage outlets and sport and recreational areas. In addition, there are three basement levels for 350 car parks.

Information on Project:

The construction of the deep basement posed a challenge to the engineers and contractors as the site is surrounded by many old pre-war buildings which are sensitive to ground disturbances. However, with careful planning and design, effects on surrounding properties were minimal.

The building is of a reinforced concrete frame structure. For the guest rooms, shear walls were adopted. Arup was responsible for the civil, structural and geotechnical design.


Resources:http://www.arup.com.my/geotechnics.htm

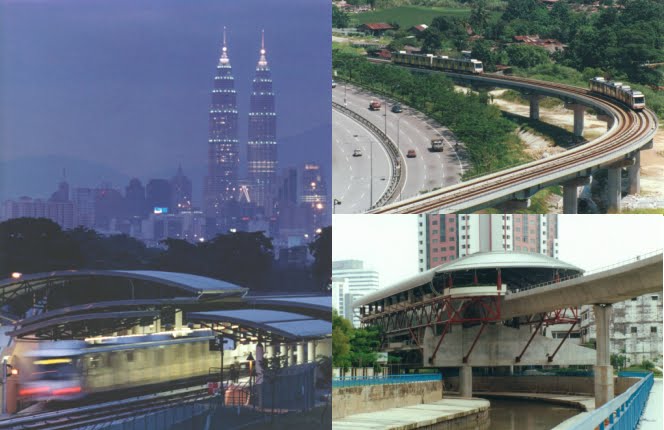

Project Title:STAR LRT Project Phase II Kuala Lumpur

Developer:Sistem Transit Aliran Ringan Sdn Bhd

Client:Taylor Woodrow Projects (M) Sdn Bhd

Consulting Engineers:(Civil, Structural and M & E Engineering) Arup Jururunding Sdn Bhd
Ove Arup and Partners International

Project Cost
:RM 1.25 billion

Completion Date:1998

Scope:
15 km long and is divided into two sections. The Southern section commences at Chan Sow Lin and terminates at the Commonwealth Games Village. The Northern section commences at Sultan Ismail and terminates at Sentul Timur.

Information on Project:

Sistem Transit Aliran Sdn Bhd (STAR) was awarded a Franchise Agreement by the Ministry of Transport Malaysia to design, construct and operate a Light Rail Transit System (LRT) for the city of Kuala Lumpur.

Arup Jururunding Sdn Bhd, in conjunction with Ove Arup & Partners International Ltd, was subcontracted by Taylor Woodrow Projects (M) Sdn Bhd to provide the civil and building works design.


The route runs partly on grade and partly on elevated viaducts. The viaducts were predominately designed as segmental prestressed box girders. On shorter stretches, steel composite viaducts were also adopted.

Arup was also responsible for the structural and building services design for the twelve stations located within Phase II.

Resources:http://www.arup.com.my/geotechnics.htm
